Le Rhône 9C Engine History





The Le Rhône 9C is a nine-cylinder rotary aircraft engine produced in France by Gnome et Rhône. Also known as the Le Rhône 80 hp in a reference to its nominal power rating, the engine was fitted to a number of military aircraft types of the First World War. Le Rhône 9C engines were also produced under license in Great Britain by several companies, and in the United States.

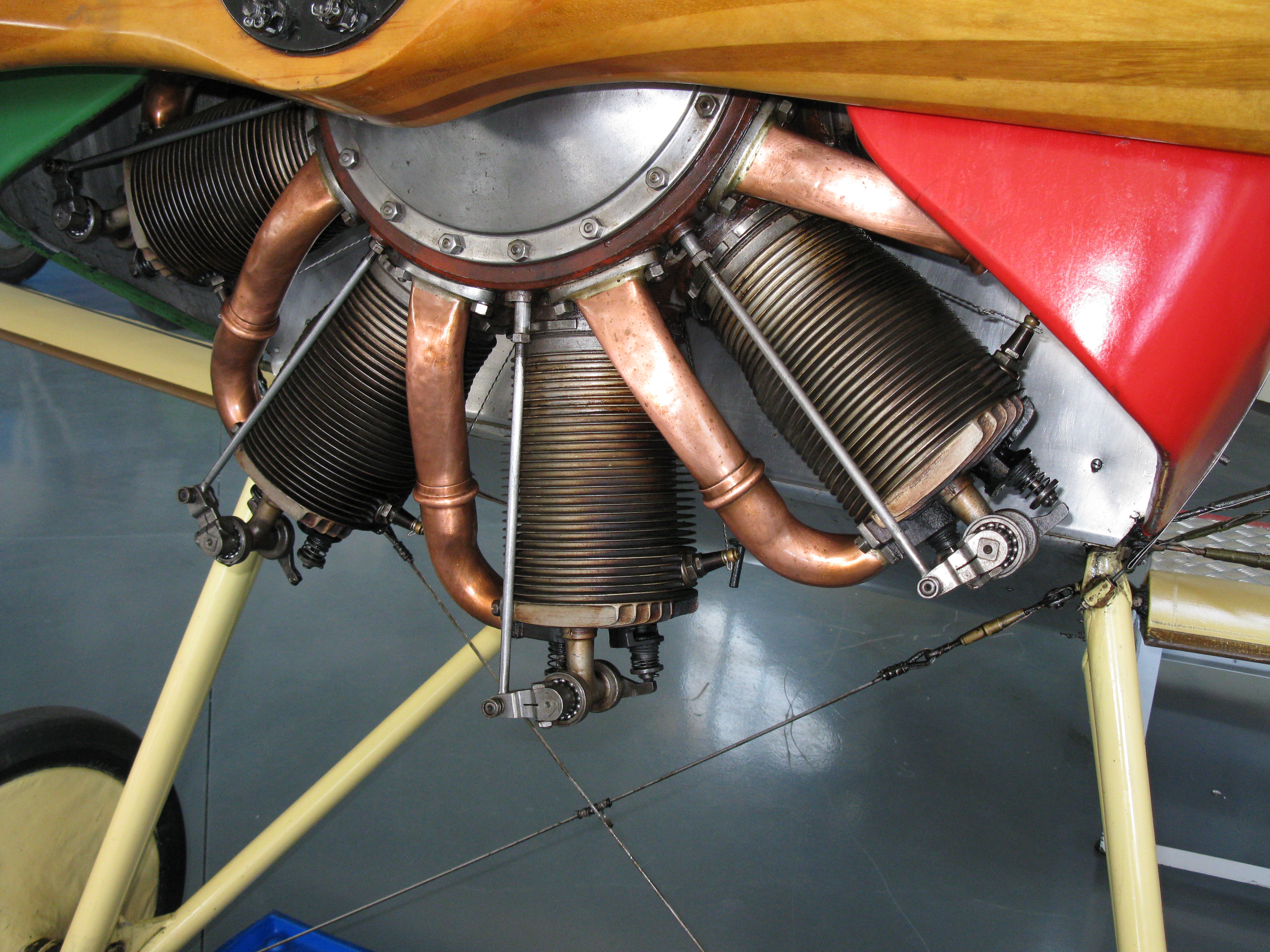

In common with other Le Rhône series engines, the 9C featured highly visible telescopic copper induction pipes and used a single push-pull rod to operate its two overhead valves.





















Applications

  • Bristol M.1
  • Morane-Saulnier P
  • Bristol Scout
  • Nieuport 10
  • Caudron G.III
  • Nieuport 11
  • Caudron G.IV
  • Nieuport 21
  • Caudron C.43
  • Pemberton-Billing P.B.23
  • Caudron C.127
  • Ponnier M.1
  • Farman HF.20
  • Royal Aircraft Factory F.E.8
  • Grahame-White Type XV
  • Royal Aircraft Factory S.E.4
  • Grahame-White Bantam
  • Sopwith Camel
  • Morane-Saulnier G
  • Sopwith Dove
  • Morane-Saulnier H
  • Sopwith Pup
  • Morane-Saulnier L
  • Thomas-Morse S-4
  • Morane-Saulnier N
  • Vickers F.B.12



Specifications

  • Type: Nine-cylinder, single-row rotary engine
  • Bore: 105 mm (4.13 in)
  • Stroke: 140 mm (5.51 in)
  • Displacement: 10.89 L (664.47 cu in)
  • Diameter: 94.5 cm (37.2 in)
  • Dry weight: 121.5 kg (268 lb)
  • Power output: 92 hp (68.6 kW) at 1,300 rpm (maximum)
  • Compression ratio: 4.5:1
