Le Rhône 9J



Societe des Moteurs Le Rhone of Paris began manufacturing air-cooled rotary engines in 1910. Its rotary was sufficiently different than that first developed by the highly successful Seguin brothers of the Societe des Moteurs Gnome, also of Paris, that it circumvented relevant Gnome patents; but was taken over by Gnome in 1914. Because Le Rhone products were in some ways superior to Gnome, its design engineers were permitted to continue development during World War I, resulting in large scale production of various nine-cylinder engines.

Thousands of Le Rhone rotary engines were built by Gnome et Rhone in France and under license around the world, including in the U.S..

The Le Rhone worked well and was a very successful design in spite of its complexity. Rotary engines were used to power Sopwith, Nieuport, Vickers, Bristol, Caudron, Thomas-Morse, Morane-Saulnier and other aircraft.

The Model J is most famous for its connection to the Nieuport 17, the French fighter flown by aces Rene Fonck, William Bishop, Charles Nungesser, Albert Ball, and Georges Guynemer. The engine's success prompted the Germans to try to salvage and duplicate Le Rhones from downed French and British fighters. Many salvaged Le Rhones and their German-built copies saw service in such fighters as the Fokker Dr.1 Triplane.

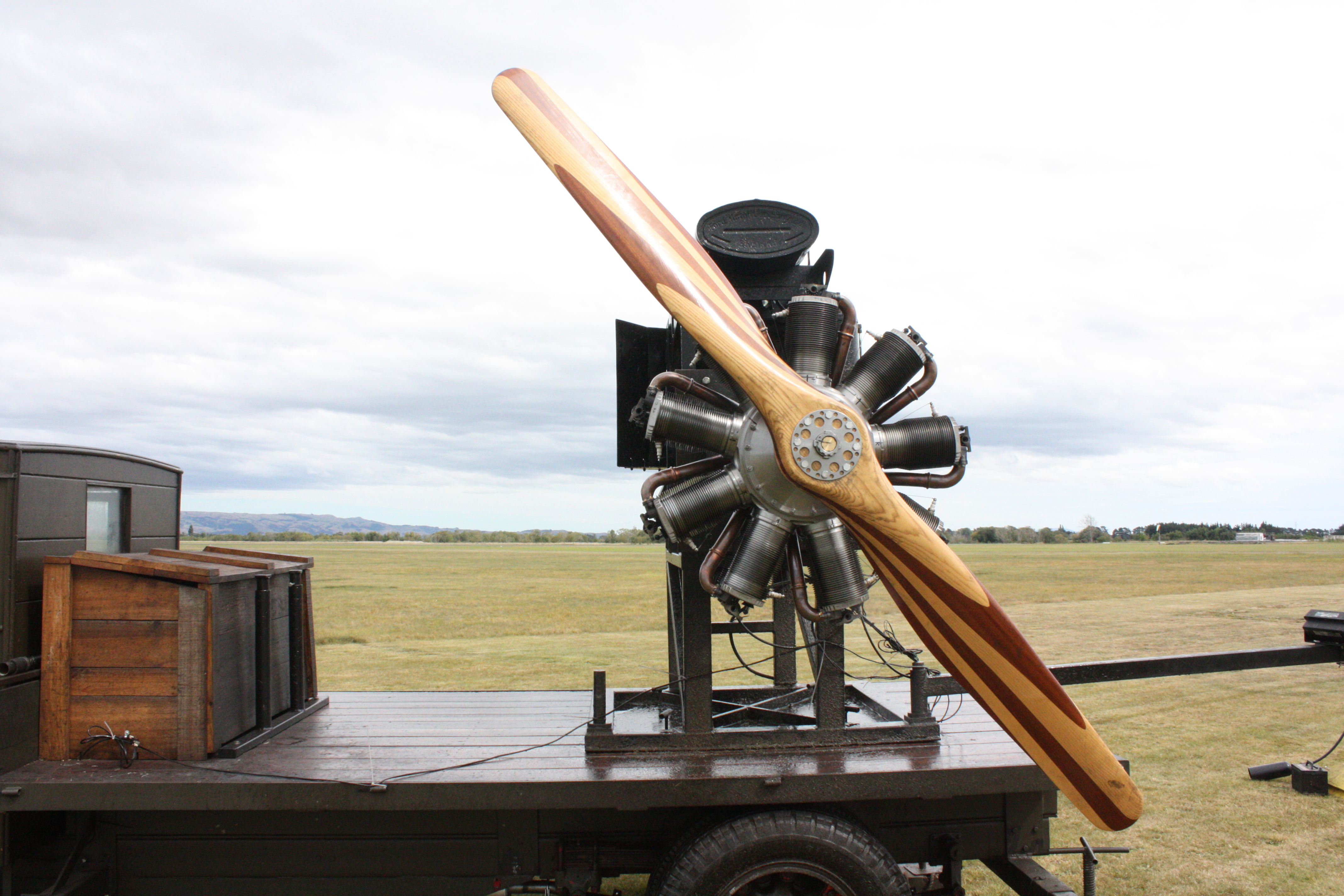

The Vintage Aviator Ltd, have reproduced the 110 Le Rhone to its exact original specifications and are now offering a limited number of these for sale.

Specifications:

Type: Nine-cylinder, single-row rotary engine
Bore: 112 mm (4.41 in)
Stroke: 170 mm (6.63 in)
Displacement: 15 L (911.4 cu in)
Dry weight: 146.5 kg (323 lb)

Performance:


Power output: 110 hp
Fuel consumption: 42 L (11 US gallons) per hour
Oil consumption: 6.8L (14.4 US pints) per hour
